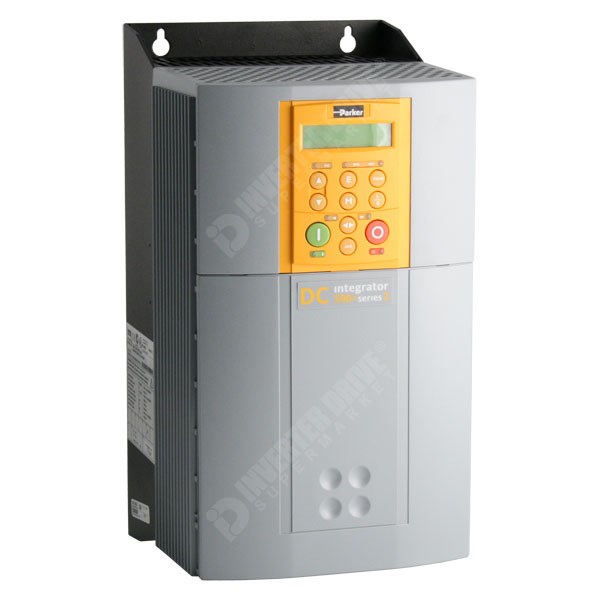

Parker SSD Drives 591P Series - 15A Single or Two Quadrant DC Thyristor Drive for 400V Supply with 110V or 230V Control supply.
Typical Motor output - up to 6kW (8HP) at 460V DC for DC motor speed and torque control.

Keypad and analogue Tachogenerator feedback board are included.
Simple to set-up in Digital, fully-isolated Single or Two Quadrant form.
Size 1 - 200mm Wide x 220mm Deep x 375mm High.

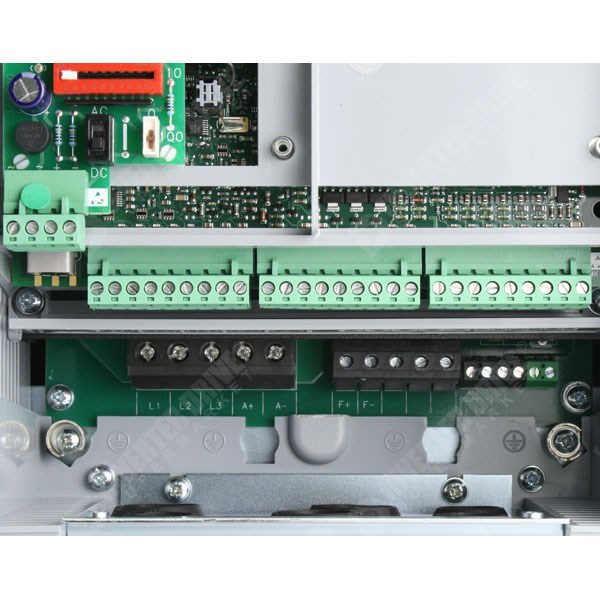

Terminals include:-
5 x Analogue Inputs (4 x Configurable).
3 x Analogue Outputs (2 x Configurable).
Tacho input (or internal AVF) Feedback.
10 x Digital inputs - 5 are Configurable including two as encoder inputs for a second or line encoder.
3 x Digital Outputs (all Configurable).
+ & - 10V for Potentiometers.

Input Current - 12.3A for Armature + up to 4A for Field.
Input Voltage - 220V to 500V +-10% at 50/60Hz (for use on 220V/230V/240V/380V/415V/440V/460V/480V three phase main supplies).
Input fuse - 25A - to suit input bridge at 720A²s
Use a choke in the supply at 50uH minimum.

Rated at 40C Ambient.
Ventilation space above - 100mm.
Ventilation space below - 100mm.
Ventilation space at sides - 0mm.
Heat Loss at max output - 57W.

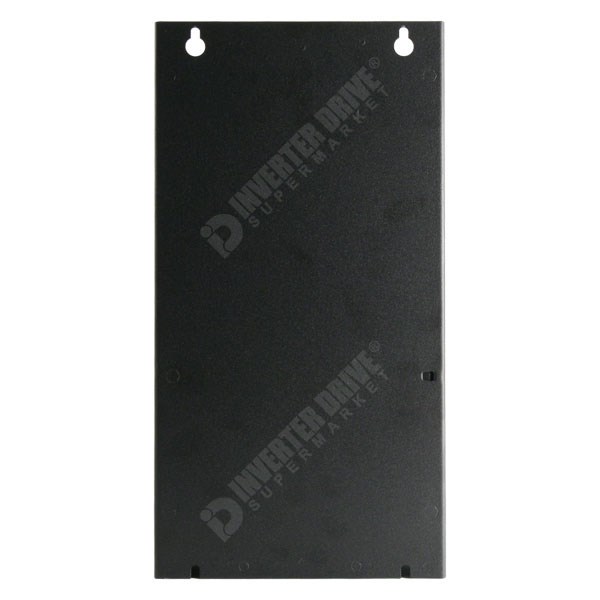

Panel mount with M6 screw fixings on 360 x 140mm centres.

Full part number is 591P-53215010-P00-U4A0. Was 591P-0015-500-0011-UK-AN-0-0-0, exactly the same as Eurotherm Drives 591P-0015-500-0011-UK-AN-0-0-0.  Use this product for code 591P-53215010-P00-U4V0 (591P-0015-500-0011-UK-AVF-0-0-0) and change the feedback option to 'AVF' for Armature Voltage Feedback as speed measurement.
