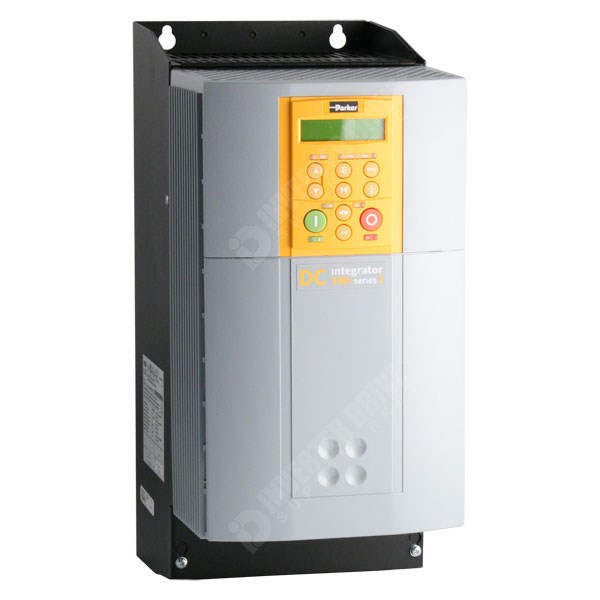

SSD Drives 591P Series - 40A Two Quadrant DC Thyristor Drive for 400V Supply with 110V or 230V Control supply (universal).
Typical Motor output - up to 16kW (22HP) at 460V DC for motor speed and torque control.

Includes Keypad and Analogue Tachogenerator feedback board.
Simple to set-up in Digital, fully-isolated Single Quadrant form and ready to run from its 'Quick Set-Up' settings.
Size 2 - 200mm Wide x 292mm Deep x 434mm High.

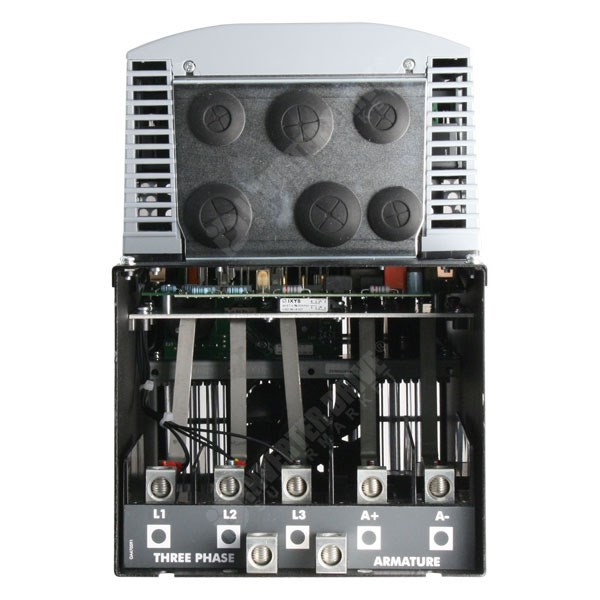

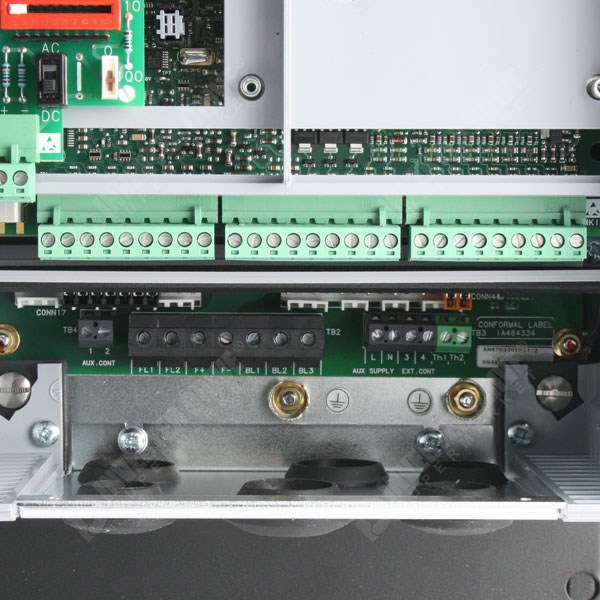

Terminals include:-
5 x Analogue Inputs (4 x Configurable).
3 x Analogue Outputs (2 x Configurable).
Tacho input (or internal AVF) Feedback.
10 x Digital inputs - 5 are Configurable including two as encoder inputs for a second or line encoder.
3 x Digital Outputs (all Configurable).
+ & - 10V for Potentiometers.

Input Current - 33A for Armature + up to 10A for Field.
Input Voltage - 380V/415V/440V/460V three phase +-10% at 50/60Hz.
Input fuse - 40A - to suit input bridge at 1150A²s
Use a choke in the supply at 50uH minimum

Rated at 40C Ambient.

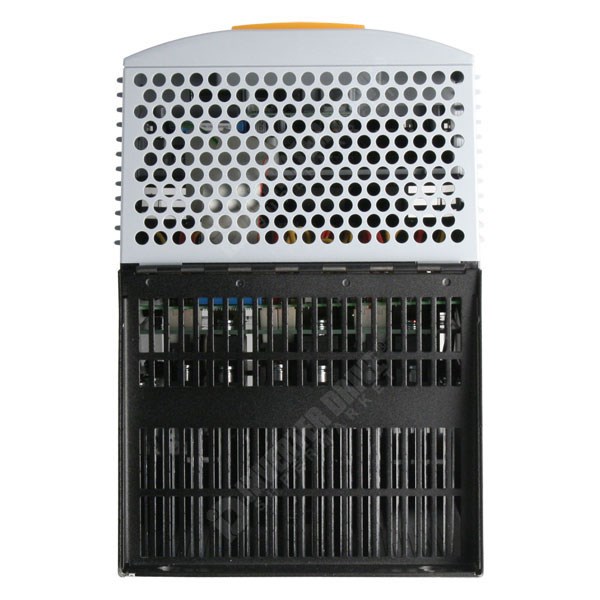

Ventilation space above - 160mm, Ventilation space below - 100mm, Ventilation space at sides - 0mm.
Heat Loss at max output - 132W.

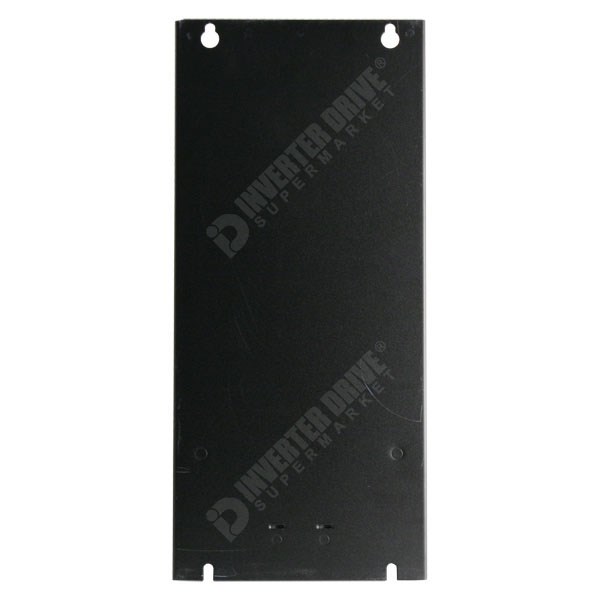

Panel mount with M6 screw fixings on 418 x 140mm centres.

Full part number is - 591P-53240020-P00-U4A0 - Was: 591P-0040-500-0011-UK-AN-0-0-0, Exactly the same as Eurotherm Drives 591P-0040-500-0011-UK-AN-0-0-0.  Use this product for code 591P-53240020-P00-U4V0 (591P-0040-500-0011-UK-AVF-0-0-0) and change the feedback option to 'AVF' for Armature Voltage Feedback as speed measurement.
