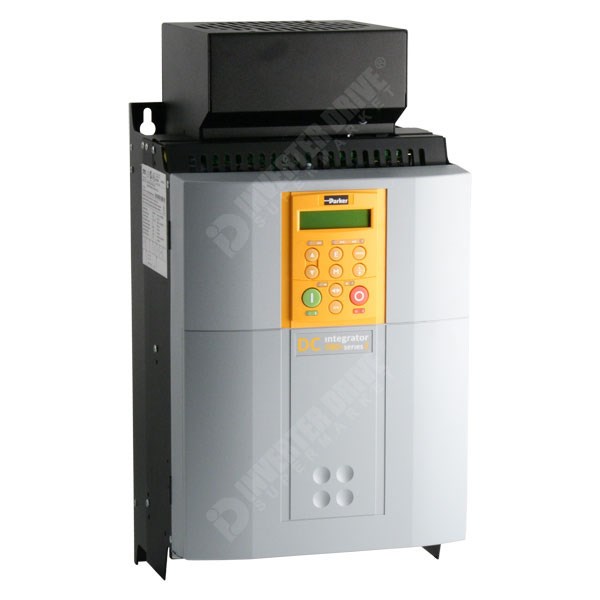

SSD Drives 590P Series - 180A Single or Two Quadrant DC Thyristor Drive for 400V Supply with 230V Control supply.
Typical Motor output - up to 75kW (100HP) at 460V DC for motor speed, torque and torque limit control.

Simple to set-up in Digital, fully-isolated Single or Two Quadrant form and ready to run from its 'Quick Set-Up' settings.
250mm Wide x 180mm Deep x 485mm High.
Weighs 20kg (packed weight is 22kg)

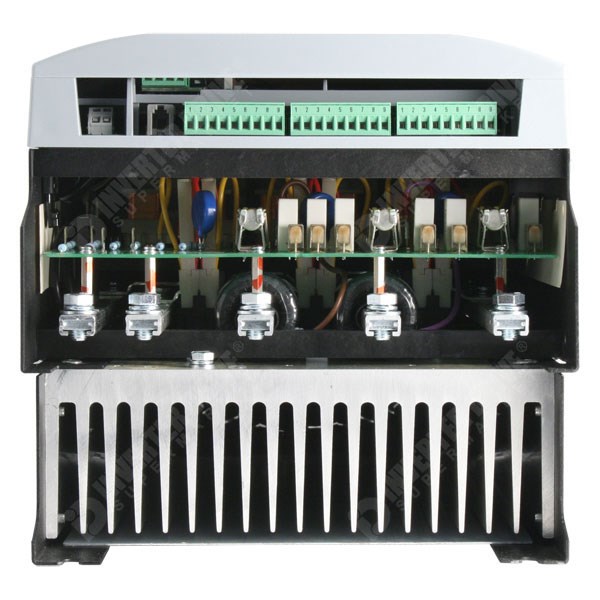

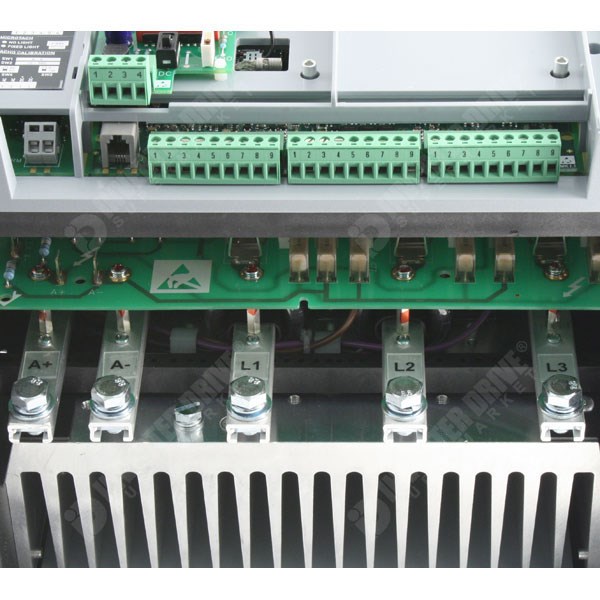

Terminals include:-
5 x Analogue Inputs (4 x Configurable).
3 x Analogue Outputs (2 x Configurable).
Tacho input (or internal AVF) Feedback.
10 x Digital inputs - 5 are Configurable including two as encoder inputs for a second or line encoder.
3 x Digital Outputs (all Configurable).
+ & - 10V for Potentiometers.

Input Current - 148A for Armature + up to 10A for Field.
Input Voltage - 380V/415V/440V/460V three phase +-10% at 50/60Hz via 200A High Speed back-up fuses.

Rated at 40C Ambient.
Ventilation space above - 150mm, Ventilation space below - 100mm, Ventilation space at sides - 0mm.
Heat Loss at max output - 570W.

Panel mount with M6 screw fixings on 400 x 200mm centres.

Full part number is - 591P-53318032-P00-U4A0 - Was 591P-0180-500-0011-UK-AN-0-230-0, Exactly the same as Eurotherm Drives 591P-0180-500-0011-UK-AN-0-0-0.

Tarriff code is 85371091

Replaces:- SSD and Eurotherm Drives 591A-0180, 546-0180 analogue products. Used on many Extruder and general applications.

Requires external back-up high speed fuses at 200A and supply via minimum 50uH choke.

View alternatives - search for 180A DC.

Download the 590P Technical Product Manual from the Link below...
