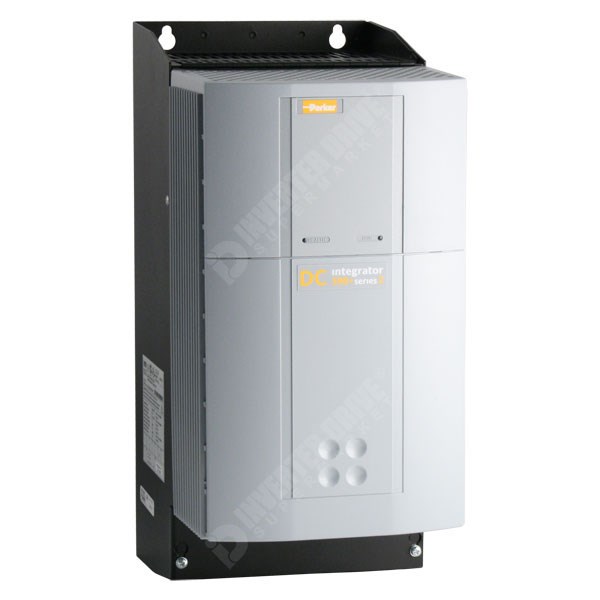

SSD Drives 590P Series -  Four Quadrant DC Thyristor Drive for 220-500V Three Phase AC Supply with 110V or 230V Control supply (universal).
Typical Motor output - up to 9kW (12HP) at up to 260V DC for motor speed and torque control.

Includes Armature Voltage Feedback.
Simple to set-up in Digital, fully-isolated Four Quadrant Static Reversing form and ready to run from its 'Quick Set-Up' settings.
Size 2 - 200mm Wide x 292mm Deep x 434mm High.

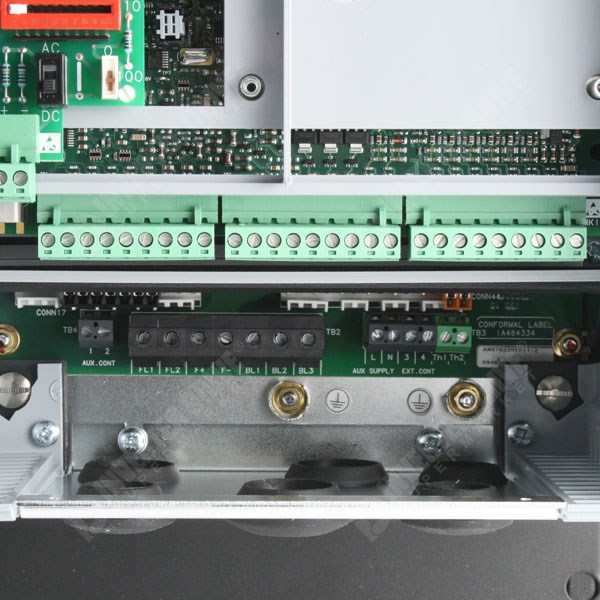

Terminals include:-
5 x Analogue Inputs (4 x Configurable).
3 x Analogue Outputs (2 x Configurable).
Internal Armature Voltage Feedback.
10 x Digital inputs - 5 are Configurable including two as encoder inputs for a second or line encoder.
3 x Digital Outputs (all Configurable).
+ & - 10V for Potentiometers.

Input Current - 32.8A for Armature + up to 10A for Field.
Input Voltage - 220V-500V three phase +-10% at 50/60Hz +-5%.

Rated at 40C Ambient.
Ventilation space above - 160mm, Ventilation space below - 100mm, Ventilation space at sides - 0mm.
Heat Loss at max output - 234W.
